Avante® Sleek

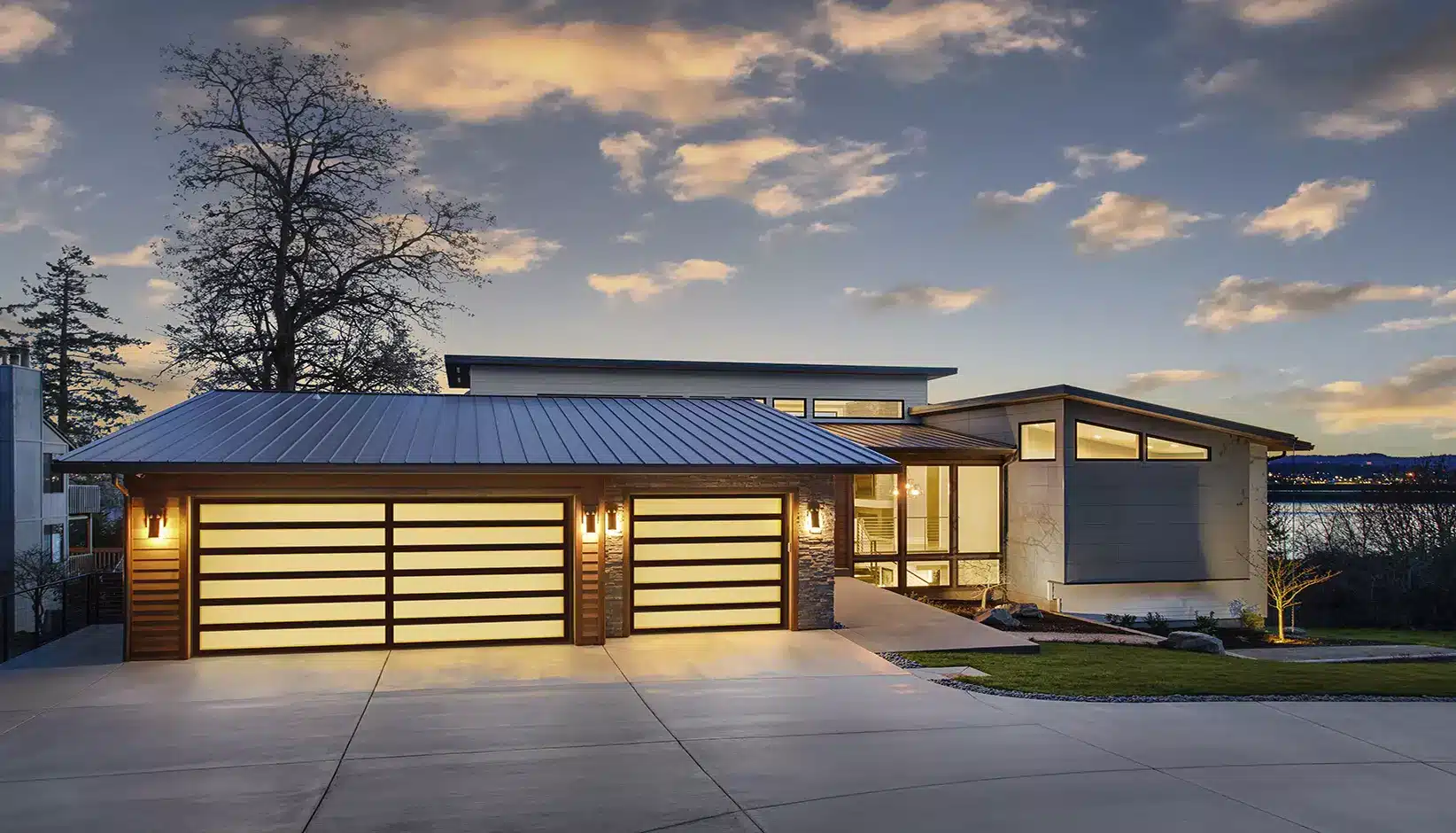

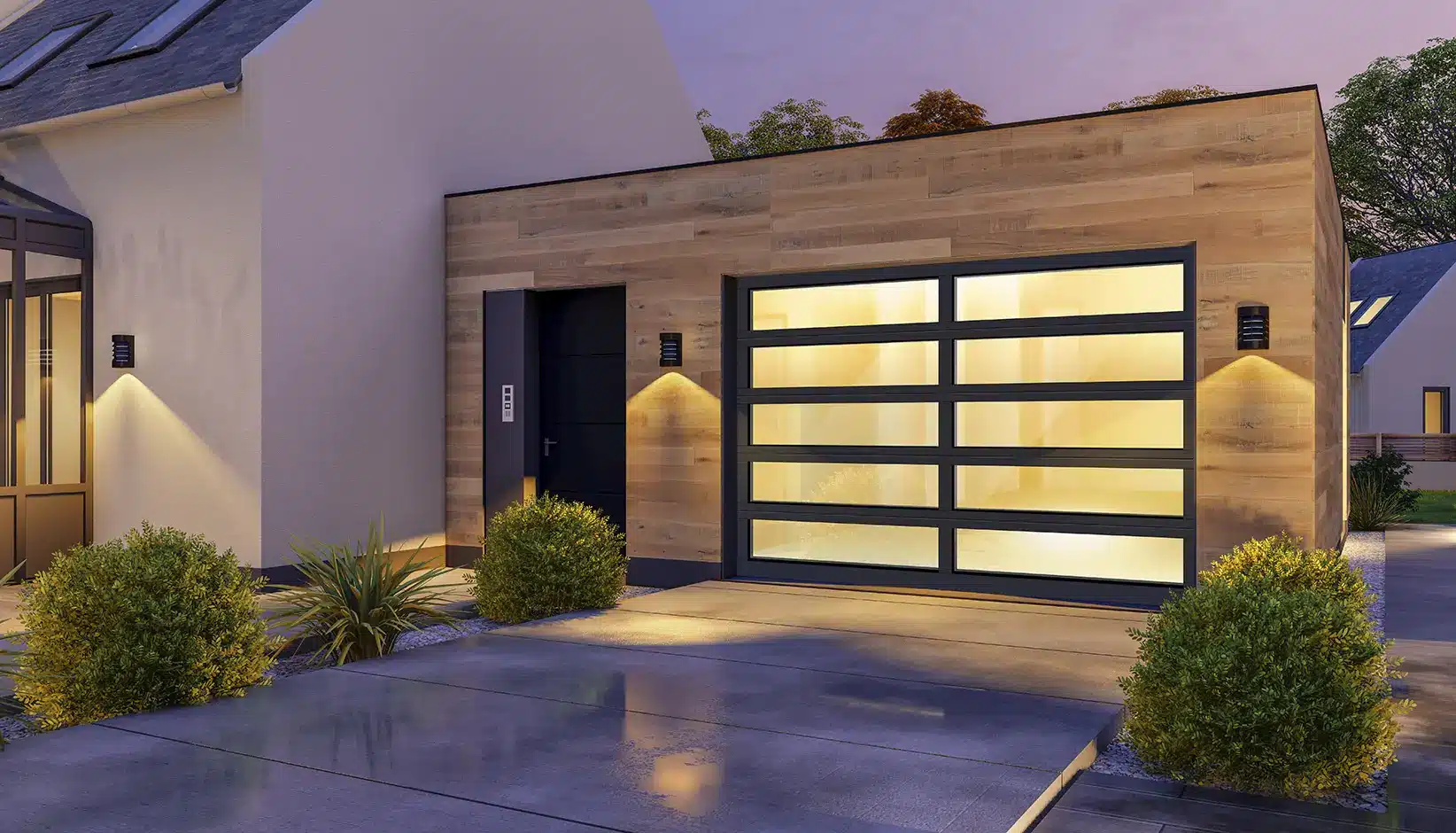

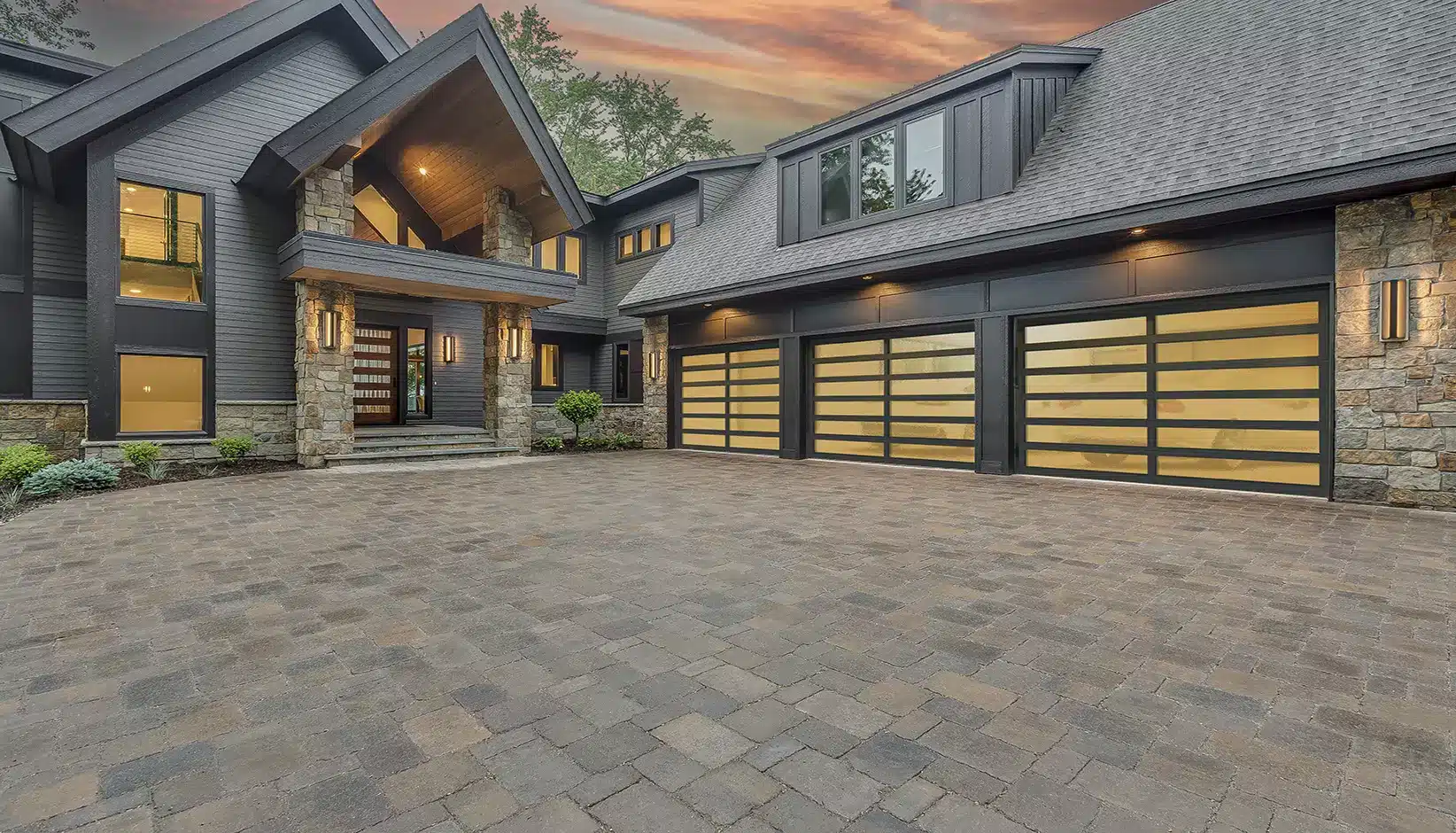

A departure from the standard grid-like window pattern, the Avante® Sleek has slim horizontal windows and minimal vertical stiles for wide, unobstructed views. If you’re in search of a garage door with a minimalist frame design that gives off “panoramic vibes” and lets in plenty of daylight, this is it. Customize the door in a number of painted or anodized finishes and glazing options.

Overview

Durable Construction

Durable, low-maintenance 2-1/8″ commercial grade aluminum frame with many glazing options

Design Customization

Aluminum frame available in a choice of anodized, painted and powder-coated finishes outfitted with tempered glass or acrylic. ColorBlast® custom paint colors also offered in 1,500 shades.

Insulation

Intellicore® polyurethane insulated stiles and rails with a 3.8 R-value. (AZU Model only) Tempered insulated glass is available for increased energy efficiency.

Door Reinforcement

WindCode® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Meets ASHRAE® 90.1 Title 24 and IECC® (International Energy Conservation Code) 2021 Section C406.9 Air Infiltration requirements.

Construction

Avante® garage doors are constructed from a low-maintenance, weather-resistant commercial grade aluminum frame outfitted with glass, other glazing materials or solid aluminum panels.

Model AZ5 and AZ6 made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting

Model AZ5U and AZ6U made of 2-1/8″ durable commercial grade aluminum with Intellicore® polyurethane insulation with an R-value of 3.8 (with clear insulated glass)

Integral section joint seal for further reduction of air and water infiltration

Smooth flat frame edge design for a more contemporary look

Reinforcing fin included on doors wider than 14’. Standard doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WindCode® doors may vary.

Intellicore^®Insulation

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

Additional Features

Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
Integral section joint seal helps keep out air and water.
Built-in reinforcing fin provides increased strength and longevity. Included on doors wider than 14’. Standard doors 12’ and under do not use a reinforcing fin. Usage on doors 12’2” to 14’ wide depends upon glass weight. WindCode® doors may vary.
A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
