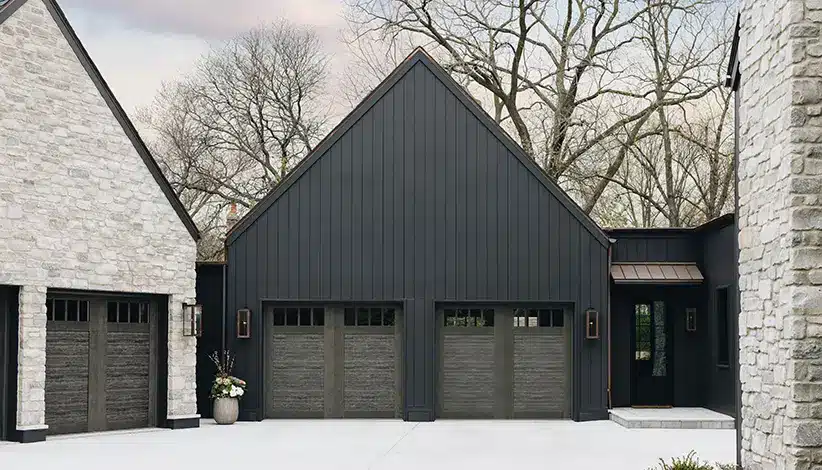

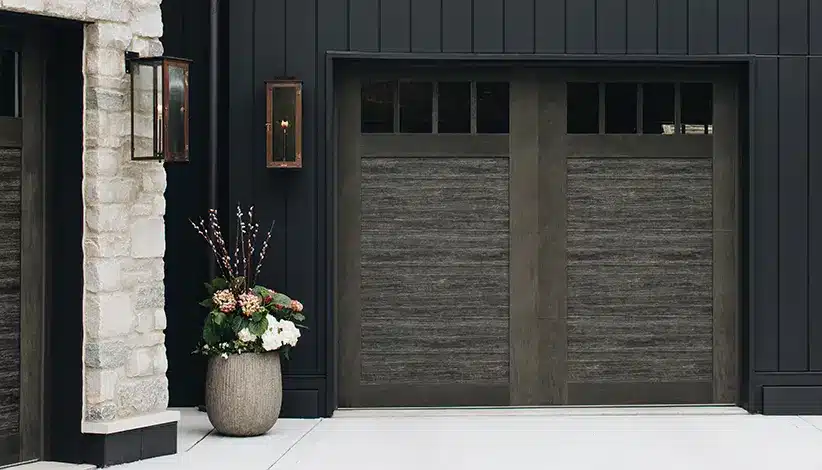

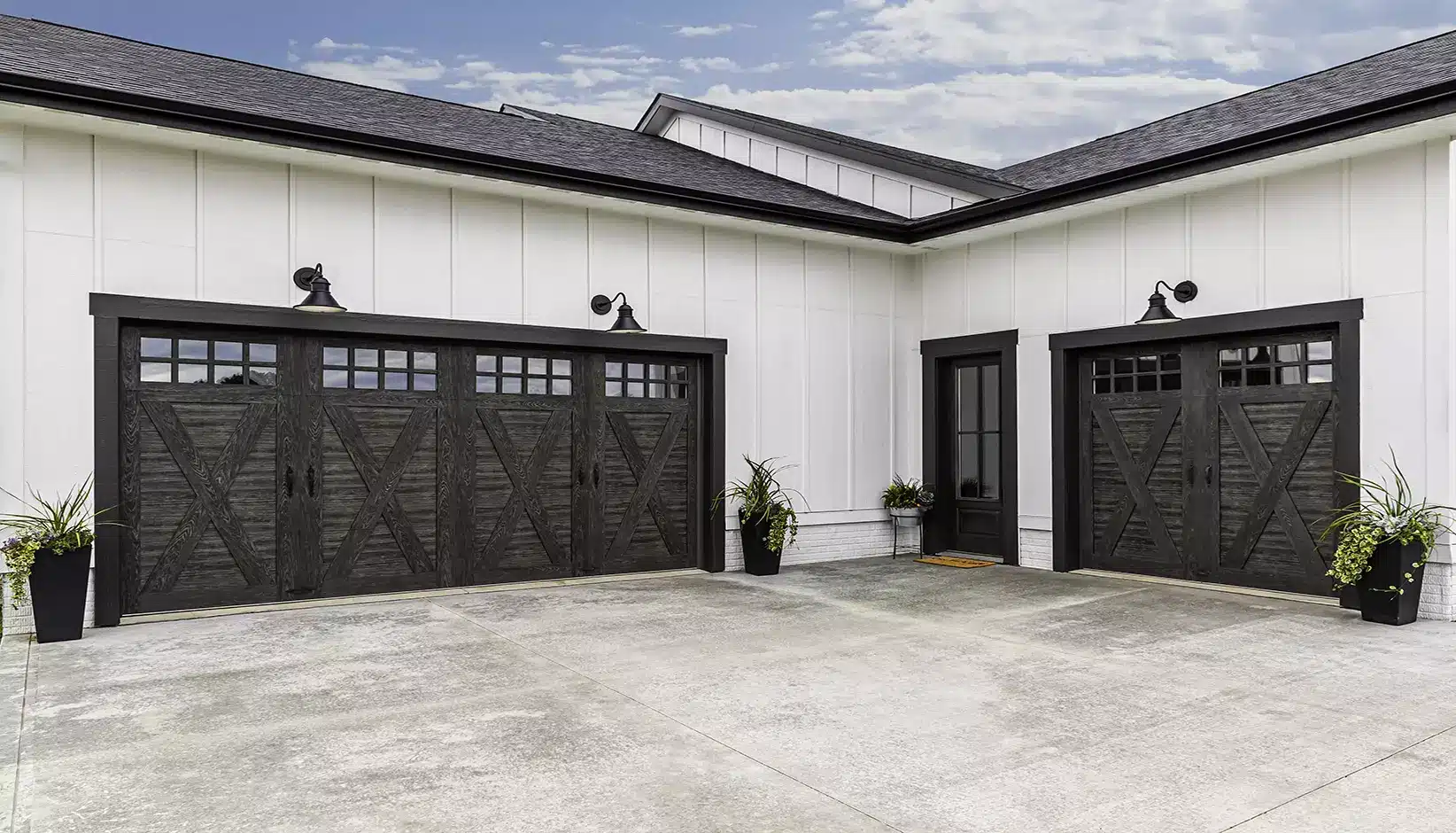

Canyon Ridge® Carriage House
(4-Layer)

A beautiful, low-maintenance alternative to real wood is the Canyon Ridge Carriage House 4-Layer faux wood garage door. Similar in construction to its 5-Layer counterpart, it also has an energy-efficient Intellicore® polyurethane insulated steel core topped with moisture-resistant composite overlays to create a carriage house design. The 4-Layer door has fully visible steel panels that can be finished in Ultra-Grain® for a stained wood look or painted a solid color to match your home.

Overview

4-Layer Construction

Steel + insulation + steel + composite overlay.

Faux Wood-Look Composite

Faux wood composite overlays are molded from real wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate. Choose from Clear Cypress for Ultra-Grain® stained wood-look finishes or Mahogany for solid paint colors.

Design Customization

Fifteen carriage house designs with optional windows and decorative hardware. Available primed, painted or stained in 8 standard finishes. ColorBlast® custom paint colors also offered in 1,500 shades.

Insulation

2″ Intellicore^® polyurethane insulation with a thermal break. R-Value of 18.4.

Door Reinforcement

WindCode^® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Construction

Clopay^® Canyon Ridge^®Carriage House (4-Layer) garage doors are built with a strong steel base door topped with low-maintenance moisture-resistant composite overlays that won’t rot, warp or crack.

Composite Overlay
Steel with Ultra-Grain® Paint Finish (Shown) or Solid Color Steel
2″ Intellicore® Polyurethane Insulation
Steel

Intellicore^®Insulation

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

Additional Features

Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Window grilles are removable for easy cleaning.
