CANYON RIDGE ® Chevron

Love the Chevron trend? This eye-catching geometric pattern has been a favorite in textiles and flooring and is available in a low-maintenance composite material that looks and feels like real wood. Choose from four distinct patterns to bring timeless appeal to your home. This moisture-resistant door won’t rot, warp or crack and can be painted or stained for a jaw-dropping good looks that last.

Overview

5-Layer Construction

Steel + insulation + steel + composite cladding + composite overlay.

Faux Wood-Look Composite

Faux wood composite cladding and overlay materials are molded from real wood pieces to reproduce the natural texture and grain patterns of the species they emulate. Choose from Clear Cypress, Pecky Cypress or Mahogany in several paint and stain colors for a look that is distinctly yours.

Design Customization

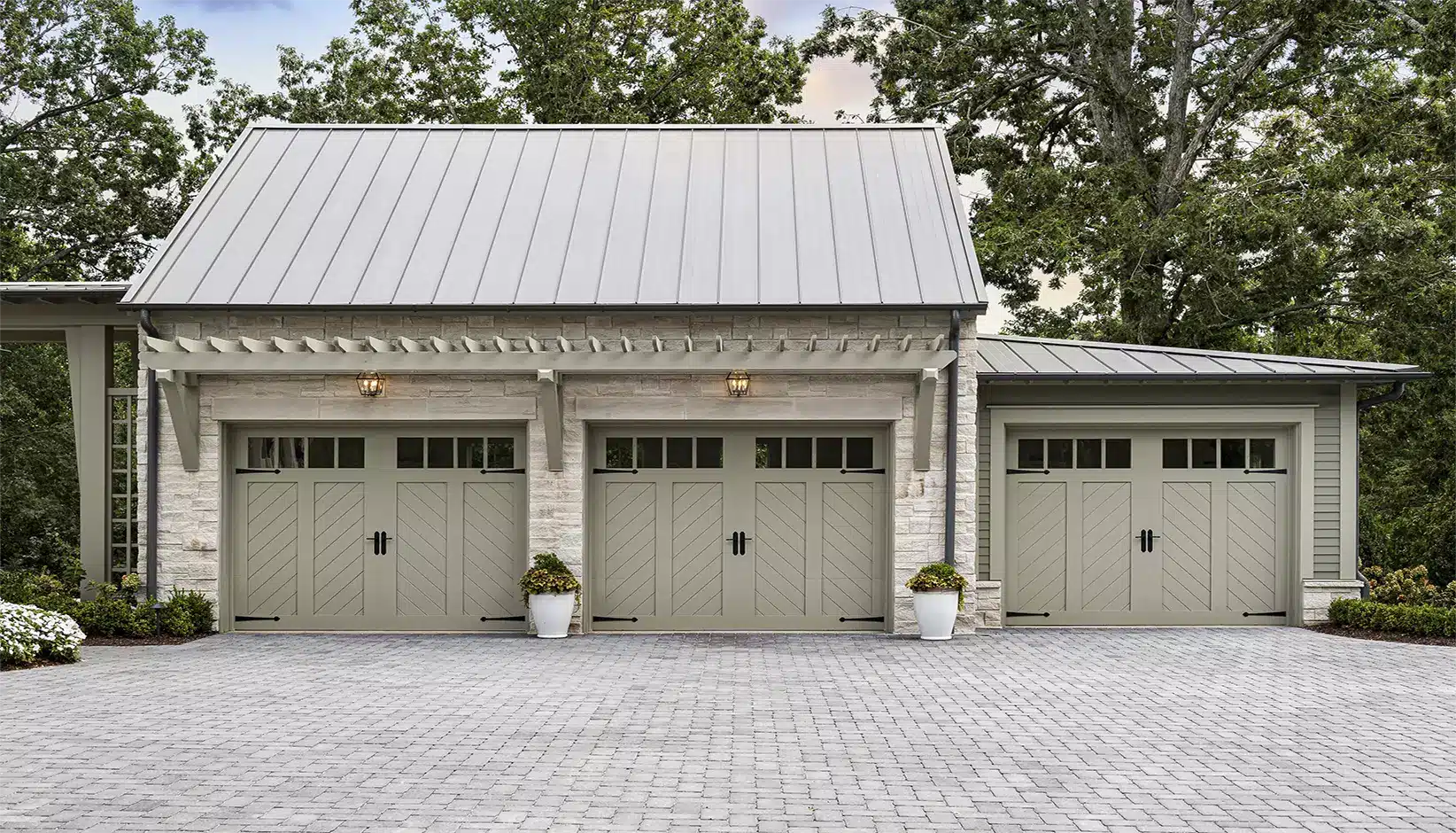

A Chevron door is a statement-maker. The cladding pieces are cut at a 45-degree angle and fit together at a point creating a zigzag pattern made of “V”s.

Fifteen designs with optional windows and decorative hardware come in 4 different patterns. Available primed, painted or stained in 8 standard finishes. ColorBlast® custom paint colors also offered in 1,500 shades.

Insulation

2″ Intellicore® polyurethane foam insulation with a thermal break delivers a 20.4 R-value for year-round comfort.

Door Reinforcement

WindCode^® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Construction

Canyon Ridge® Chevron garage doors are built with a strong steel base door topped with low-maintenance, moisture-resistant composite overlays that won’t rot, warp or crack.

Composite Overlay
Composite Cladding
Steel
2″ Intellicore® Polyurethane Insulation
Steel

Intellicore^®Insulation

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

Additional Features

Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Window grilles are removable for easy cleaning.
