Gallery® Steel
We’ve taken the iconic raised panel steel garage door and given it a vintage feel by adding a grooved panel design, optional windows, decorative wrought iron hardware and many unique color choices, including our Ultra-Grain® wood-look and Lustra™ matte finishes. The result is classic, versatile styling and durability at a price that bridges the gap between simply being on your wish list and reality.
3-, 2- or 1-Layer Construction
Available in 3, 2 or 1-layer construction options
Design Customization
Short and long grooved panel designs with optional insulation, windows and decorative hardware. Available in 16 colors including Ultra-Grain® wood-look and Lustra matte finishes. ColorBlast® custom paint colors also offered in 1,500 shades.
Insulation
Insulation options include 2″ or 1-3/8″ Intellicore® polyurethane, 2″ or 1-3/8″ polystyrene or 1-5/16″ vinyl backed polystyrene. Insulated door R-values range from 6.5 to 18.4.
Door Reinforcement
WindCode® door reinforcement product available for high wind load applications.
Environmental Assurance
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Whether you’re dreaming of an elegant, sleek, or unique exterior, our Gallery Steel garage doors can bring your vision to life! Rejuvenate your home’s curb appeal with its versatile style.
- Steel
- Intellicore® Polyurethane or Polystyrene Insulation
- Steel
Intellicore® Insulation
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.
Additional Features
- Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
- Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
- A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
- All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
- Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
- Window grilles are removable for easy cleaning.
Long Panel
Long Panel
Solid Top Sections
Short Solid
Long Solid
Top Sections With Windows
Plain Short
REC12
SQ22
Plain Long
REC14
SQ24
ARCH1 Plain
ARCH1 With Vertical GRILLE14
ARCH1 With GRILLE24
ARCH2 Plain
ARCH2 WITH GRILLE24
ARCH2 WITH VERTICAL GRILLE14
Wrought Iron Short*
Wrought Iron Long*
Wrought Iron Arch*
Architectural Series Windows
Plain Short
Short With Rectangular Grilles
Plain Long
Short With Squares Grilles
Long With Rectangular Grilles
Long With Square Grilles
ARCH1 Plain
ARCH1 With Vertical Grilles
ARCH1 With Grilles
ARCH2 Plain
ARCH2 With Grilles
ARCH2 With Vertical Grilles
Wrought Iron Short*
Wrought Iron Long*
Wrought Iron Arch*
Double Top Sections
ARCH3 Plain
ARCH3 With Grilles
ARCH3 With Vertical Grilles
Seeded
Rain
Frosted
Obscure
Standard Colors
Standard White (W)
Almond (W)
Sandtone (W)
Bronze (W)*
Chocolate (W)
Mocha Brown (W)*
Charcoal (W)*
Desert Tan (W)
Premium Colors
Black (W)
Ultra-Grain Oak Medium Finish (S)*
Ultra-Grain Oak Dark Finish (S)*
Ultra-Grain Oak Walnut Finish Low Gloss (W)±
Ultra-Grain Oak Slate Finish (S)
Ultra-Grain Oak Slate Finish Low Gloss (W)±
Lustra Charcoal*±
Lustra Black (M)*
Lustra Silver (M)*
Ultra-Grain Oak Walnut Finish (S)
Handles
Spade Lift Handles (included)
Colonial Lift Handles
Spear Lift Handles
Escutcheon Plates
Twisted “T” Handle
Twisted “L” Handles
Plates
Colonial Step Plate
Spade Step Plate
Spear Step Plate
Hinges
Spade Strap Hinge
Spear Strap Hinge
Colonial Strap Hinge

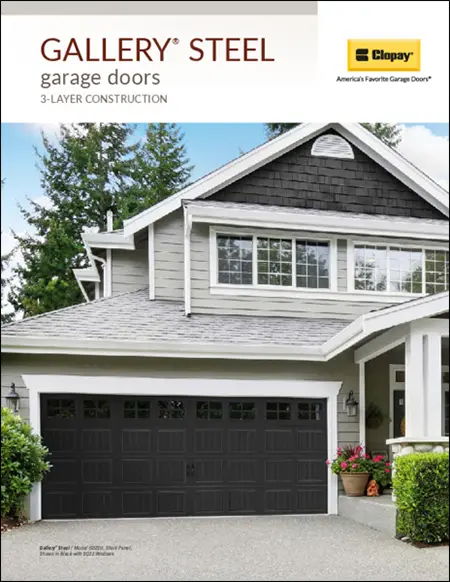

Gallery Steel 3-Layer Construction
The Gallery ® Steel three-layer construction provides exceptional strength, energy efficiency and dent resistance as well as a beautiful carriage house appearance. The 2″ or 1-3/8″ thickness of Intellicore® polyurethane or bonded polystyrene insulation and thermal break makes these doors heat and cold resistant while the tongue-and-groove joint helps seal out wind, rain and snow. Available in short and long panels with multiple window options, the three-layer Gallery ® Steel is virtually maintenance-free, so the first fabulous impression becomes a lasting impression.

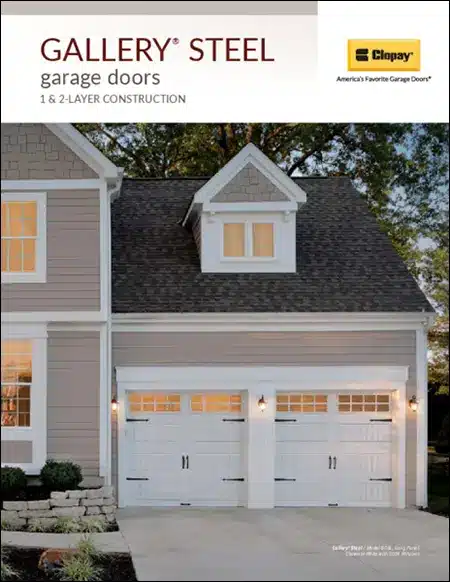

Gallery Steel Non-insulated 1 & 2 Layer
Clopay’s 1- and 2-layer Gallery® Steel combines stylish carriage house designs at more affordable prices. Create a look that complements the overall look of your home by selecting the panel size, window or solid top section design and decorative hardware to give it that one-of-a-kind look.
Ultra-Grain Paint Option Brochure
Clopay’s Ultra-Grain® finish delivers the best of both worlds: the realistic look of natural wood with the low maintenance and energy efficiency benefits of insulated steel. But unlike real wood, it’s UV-resistant and impervious to moisture, so it won’t fade, rot, split, shrink or crack, saving you and the environment material, energy and resources necessary to maintain or replace door components.
Products Available Through Independent Dealers
A garage door can represent as much as 30% of your home’s front façade, which makes choosing the right design especially important – and Clopay has the widest selection available
Products Available at Home Depot
A garage door can represent as much as 30% of your home’s front façade, which makes choosing the right design especially important – and Clopay has the widest selection available
Residential Sectional Insulated Steel Doors
Installation instructions for our residential insulated steel garage doors
Installation Warranty
All of our Master Authorized and Authorized Dealers offer a minimum 1 Year installation Warranty on Clopay replacement doors.
Canyon Ridge Care and Maintenance
Canyon Ridge Care and Maintenance
Residential Sectional 1-Layer And 2-Layer Doors
Installation Instructions for Residential Garage Doors
Steel Garage Doors Care and Maintenance
Steel Garage Doors Care and Maintenance
