Modern Steel™ Ultra-Grain® Plank

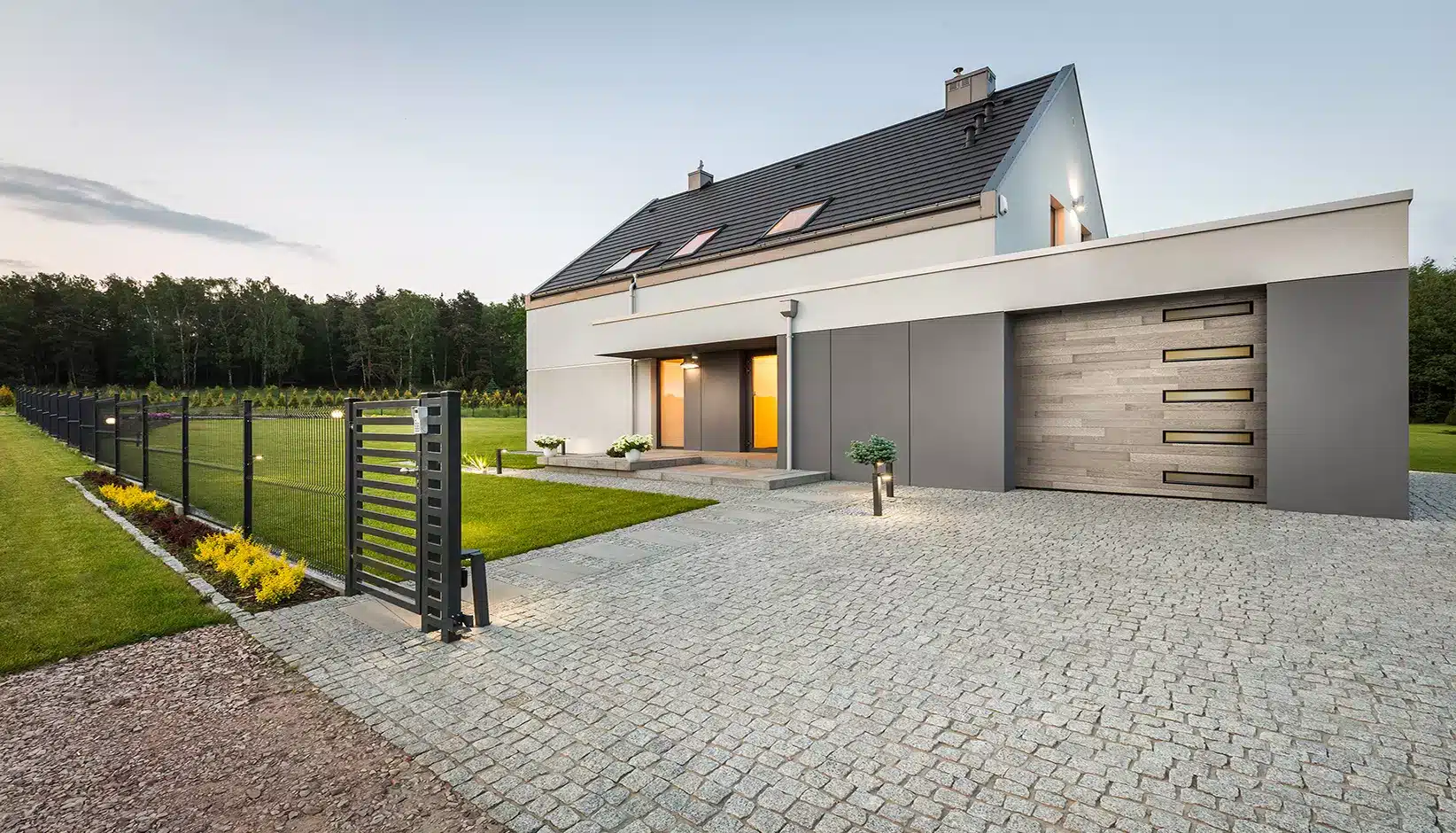

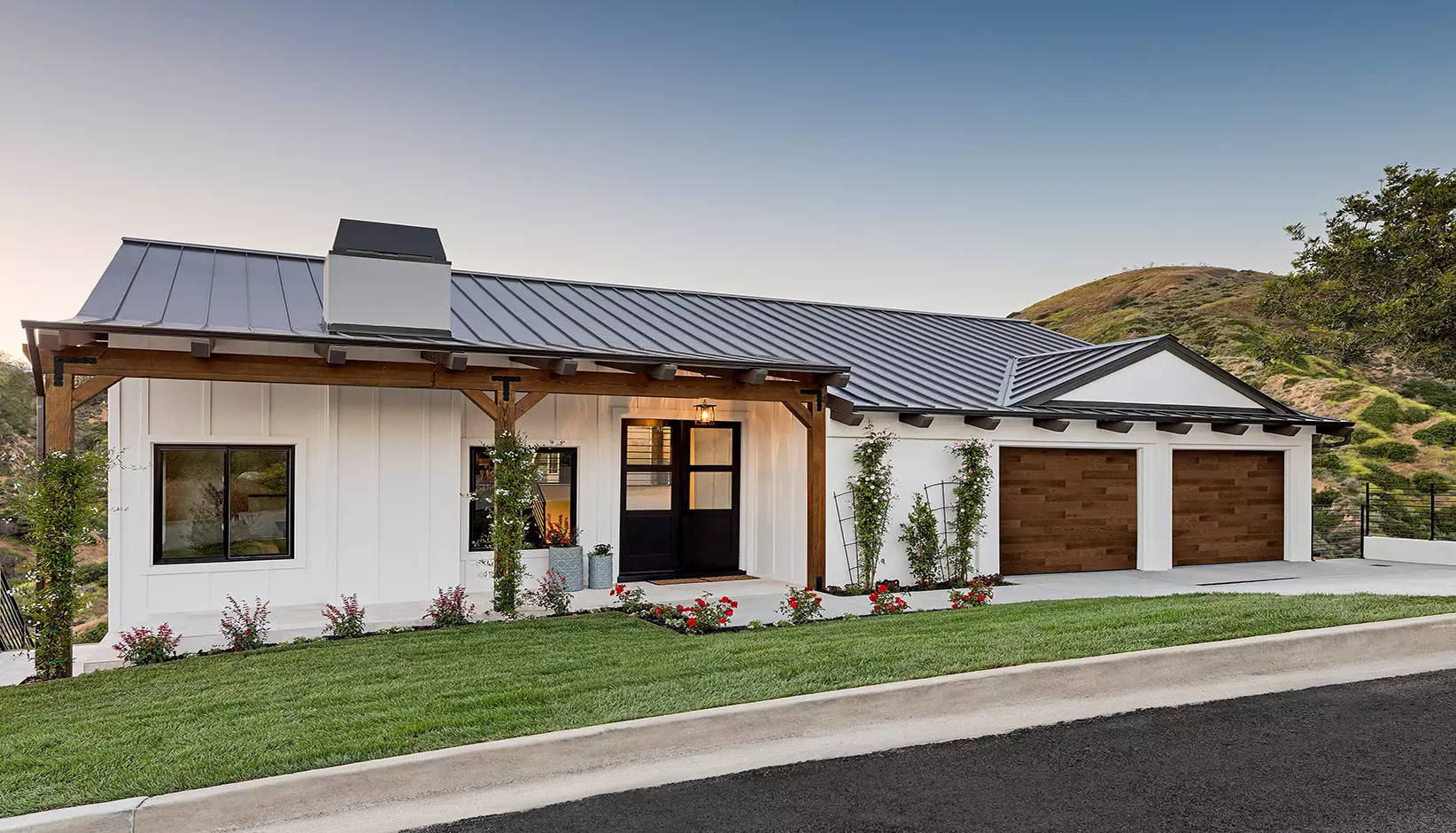

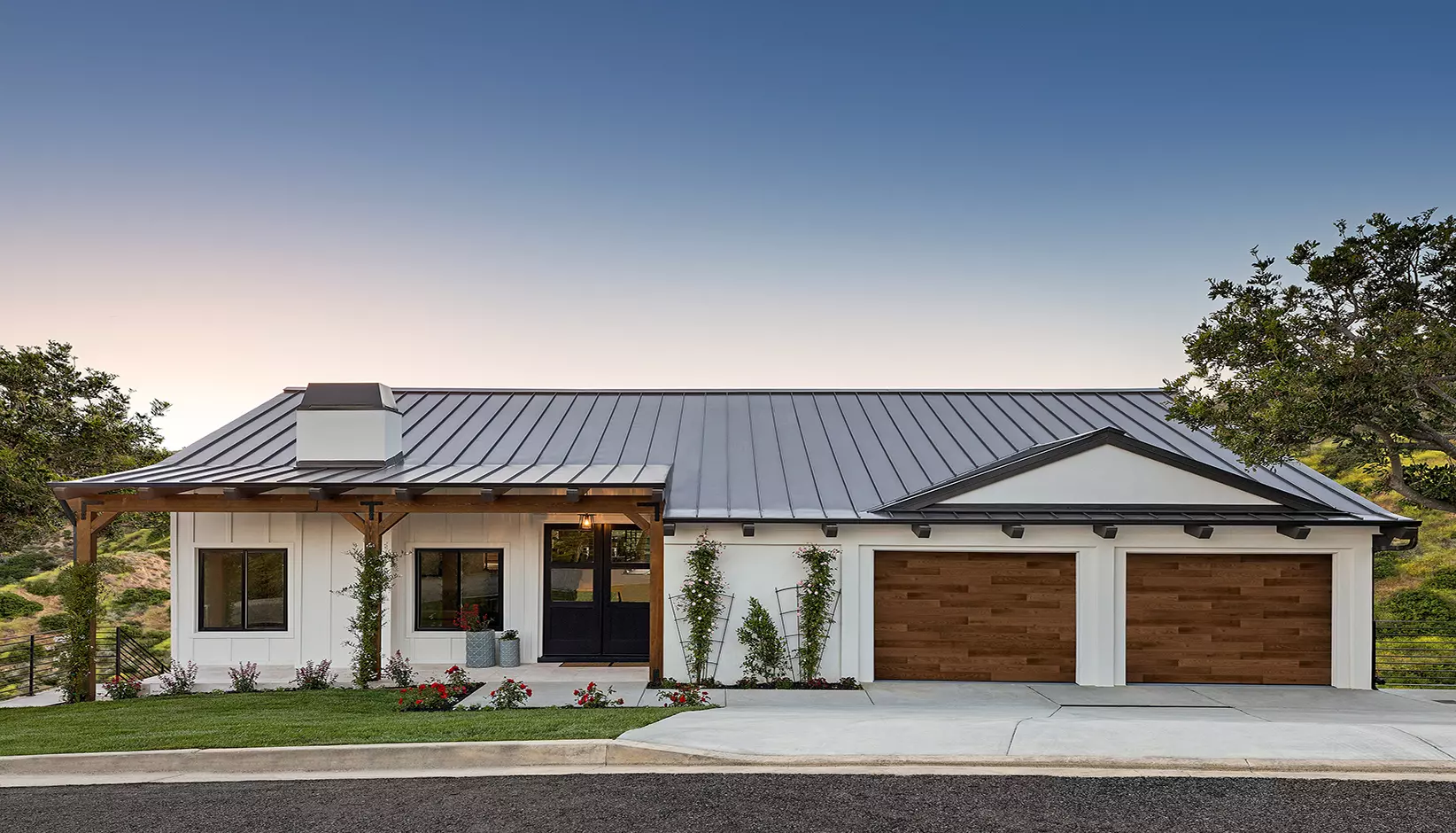

Rustic meets modern on this unique flush panel Modern Steel door design featuring digitally printed horizontal planks with a stained wood-look appearance. The planks vary in length for a woven look with no repeating grain pattern. The versatile garage door style complements mid-century, farmhouse, coastal cottage and transitional home styles with clean horizontal lines, simple pattern and a nice tonal variation for visual interest.

Overview

3-Layer Construction

Available in 3-layer construction

Design Customization

Choose from two Ultra-Grain Plank wood-look finishes on an insulated flush panel steel door with an embossed stucco surface texture. Short, long and contemporary slim windows can be stacked vertically down one side, both sides, and placed in some or all sections. The window frames are painted a solid color to complement the Ultra-Grain finish or come in contrasting Silver and Black accent colors.

Insulation

Features 2″ Intellicore® polyurethane foam insulation with an 18.4 R-value.

Door Reinforcement

WindCode® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill
2″ thick polystyrene doors and all Intellicore® insulation doors comply with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2).

Construction

Modern Steel Ultra-Grain Plank doors have a 3-layer construction with 2” Intellicore polyurethane insulation.

Steel
Intellicore® Polyurethane
Steel

Intellicore^®Insulation

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

Additional Features

Tongue-and-groove section joints keep out wind, rain and snow.
Replaceable vinyl bottom weatherseal in a corrosion-resistant aluminum retainer helps seal out the elements.
Two-inch thick polystyrene and all Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
Patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket is removed with the garage door closed and under tension.
Durable, color-matched exterior step plate/lift handles allow for safe and convenient opening and closing.
Window grilles are removable for easy cleaning.
